52 25 380 Removing and installing/replacing left or right rear head restraint mount

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove rear HEAD RESTRAINT
Remove REAR PANEL on rear seat backrest
Remove BACKREST COVER in upper area

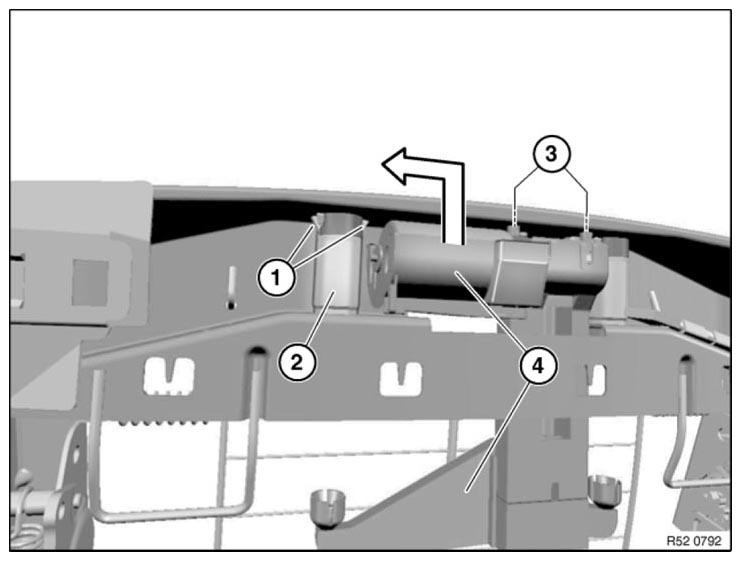

Fig 1: Identifying Head Restraint Mount, Catches, Screws And Guide

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Move head restraint fully downwards (otherwise removal of head restraint guide is not possible!).

Disconnect plug connection.

Unlock catches (1) and remove guide (2) on left and right towards top.

Release screws (3).

Tightening torque 67 31 14AZ .

Tilt head restraint mount (4) in direction of arrow and feed out towards top.

NOTE:

Carry out FUNCTION CHECK WITH ADAPTER CABLE (FOR SEAT REPAIRS) .
