52 16 022 Removing and installing/replacing adjusting unit for thigh support on front passenger seat
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
This removing/installing/replacing procedure applies to "Sport" seat version.
Necessary preliminary work:
- Remove FRONT PASSENGER SEAT
Move thigh support forwards as far as possible.

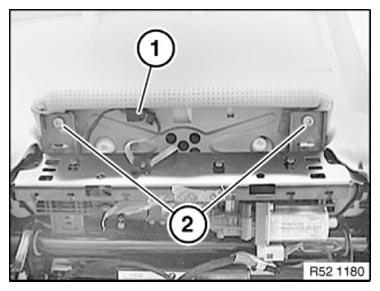

Unfasten plug connection (1) and disconnect.
Unfasten screws (2).
Installation note:
Insert screws (2) with Loctite.
Tightening torque 52 10 11AZ .

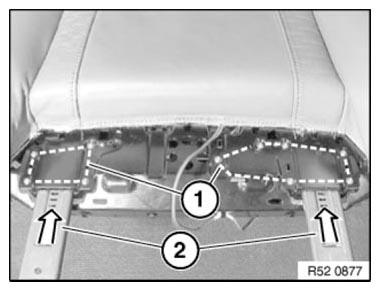

Release screws in areas (1).
Tightening torque 52 10 9AZ .
Feed out adjusting unit (2) complete with drive in direction of arrow and remove.
NOTE:
