RSE (rear passenger compartment monitor) function check

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The function check of the RSE (rear passenger compartment monitor) on a repaired driver's or front passenger seat can be performed outside the vehicle by using adapter cable 61 4 140 .

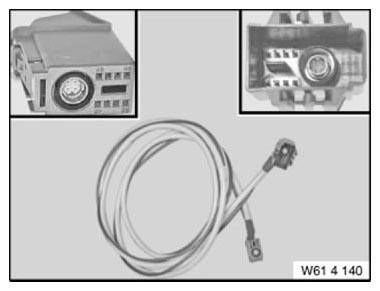

Fig 1: Identifying Adapter Cable
G06895174Courtesy of BMW OF NORTH AMERICA, INC.

Application:

Adapter cable is connected to vehicle wiring harness and removed seat 61 4 140 .
