52 17... Removing and installing/replacing left or right thigh support

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This removing/installing/replacing procedure applies to "Comfort" seat version.

Move thigh support (3) as far forward as possible.

Release screws (1).

Tightening torque 52 10 11AZ .

Disconnect plug connections (2).

Remove thigh support (3) towards top.

Fig 1: Identifying Screws And Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, unclip cover (1) towards top and remove.

Installation note:

Secure guide pins (2) in seat frame and clip cover (1) into place.

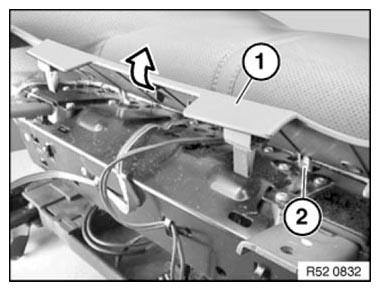

Fig 2: Securing Guide Pins In Seat Frame

Courtesy of BMW OF NORTH AMERICA, INC.
