67 32 610 Replacing fans for backrest on front seat

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Partially remove backrest cover:
- Normal/electric seat, see REPLACING BACKREST COVER FOR DRIVER'S SEAT or REPLACING BACKREST COVER FOR PASSENGER SEAT
- Comfort seat, see REPLACING BACKREST COVER FOR DRIVER'S SEAT or REPLACING BACKREST COVER FOR FRONT PASSENGER SEAT

NOTE: For purposes of clarity, picture shows backrest padding and backrest cover removed.

Remove dividing net (1) towards top.

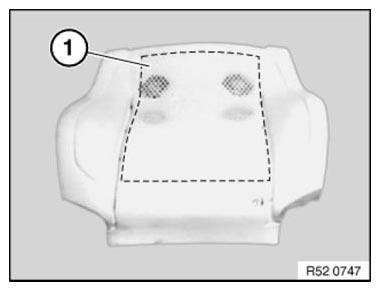

Fig 1: Identifying Front Seat Backrest Fan Dividing Net

Courtesy of BMW OF NORTH AMERICA, INC.

Remove fans (1) towards top.

Installation:

Make sure fans have correct cable routing (2) (cables point to each other).

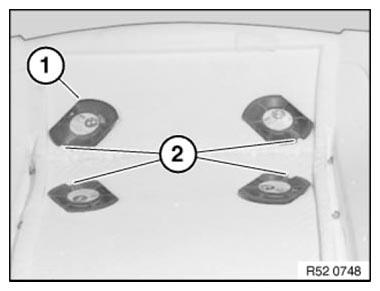

Fig 2: Identifying Front Seat Backrest Fan With Cable Routings

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Carry out FUNCTION CHECK WITH ADAPTER CABLE
