51 37 000 Removing and installing/replacing complete rear left or right power window regulator: Notes
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Danger of injury!
Carry out work on the power window regulator only when the power window motor is de-energized.
Necessary preliminary tasks:
- Remove rear side window glass. See REPLACING REAR SIDE WINDOW GLASS (WITHOUT ROLLER SUN BLIND) or REPLACING REAR SIDE WINDOW GLASS (WITH ROLLER SUN BLIND) .

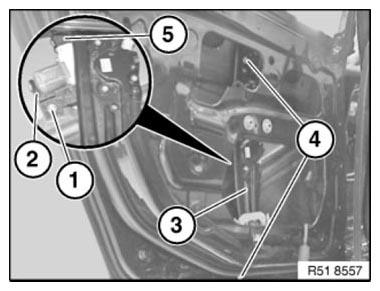

Slacken bolt (1).
Tightening torque 51 35 11AZ .
Release screws (4).
Tightening torque 51 35 2AZ .
Disconnect plug connection (5).
Feed out power window regulator (3).
Installation note:
Holder (2) must be correctly seated on inner door panel rail.
Installation note:

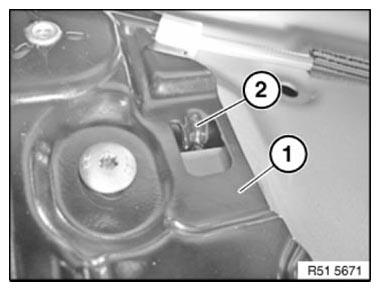

Make sure guide lug (2) of power window regulator (1) is correctly seated in recess in door structure.
Final work operations:
- Pay attention to INSTRUCTIONS FOR INITIALIZING THE POWER WINDOW REGULATOR
