51 12... Replace trim strip of the rear bumper panel (M aerodynamic package)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

Observe notes for SECURING COMPONENTS WITH ADHESIVE TAPE .

Removal:

NOTE: Trim strip (1) has been bonded to the bumper panel with double-sided adhesive tape.

Carefully heat up the trim strip (1).

Carefully loosen the trim strip (1) from the bumper panel with special tool 00 9 325 .

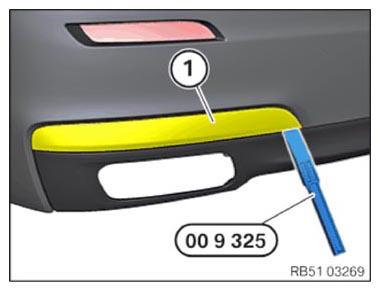

Fig 1: Loosening Trim Strip From Bumper Panel With Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean adhesive area on the bumper panel (1).

Loosen liner from adhesive tape (2).

Position trim strip (3) over the guide pin on the bumper panel (1) and apply.

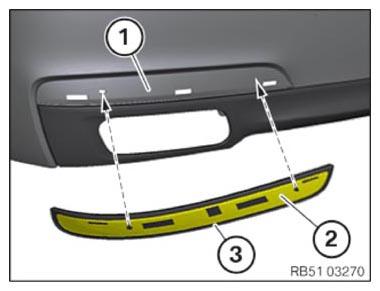

Fig 2: Positioning Trim Strip Over Guide Pin On Bumper Panel

Courtesy of BMW OF NORTH AMERICA, INC.
