51 16 165 Removing and installing complete center console

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove GEAR SELECTOR SWITCH
Remove CENTER ARMREST STORAGE COMPARTMENT
Remove REAR CENTER CONSOLE TRIM

IMPORTANT: Read and comply with notes on HANDLING WIRING HARNESSES and cables.

NOTE:

Remove ashtray insert
Remove storage compartment trim

Release screws (1).

Tightening torque 51 16 8AZ .

Remove front storage tray (2) in direction of arrow.

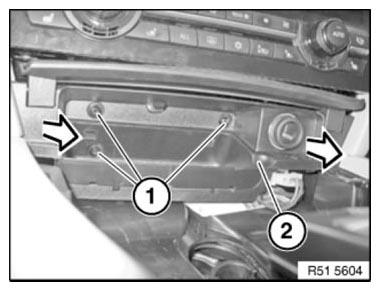

Fig 1: Removing Front Storage Tray

G06885401

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on instrument panel (2).

Tightening torque 51 16 8AZ .

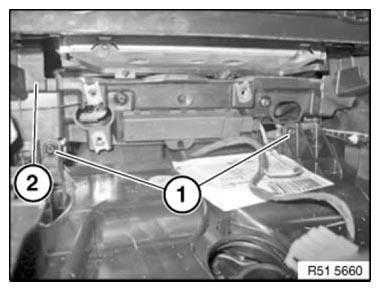

Fig 2: Identifying Instrument Panel With Screws

G06885402

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws on tunnel (1) on left and right.

Tightening torque 51 16 7AZ .

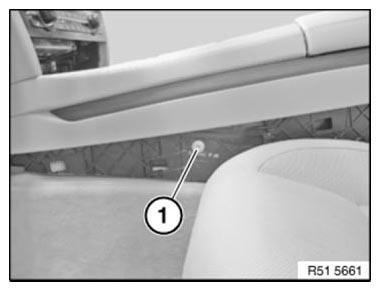

Fig 3: Identifying Tunnel

G06885403

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 16 4AZ .

Feed out center console (2) towards rear.

Unlock and disconnect plug connections and plug holders underneath.

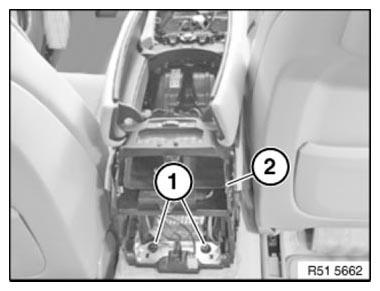

Fig 4: Identifying Center Console And Screws

G06885404
