51 23 110 Removing and installing/replacing engine compartment lid lock on left (from 09/2008): Replacement

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Engine compartment lid catch with microswitch:

Feed wiring harness (1) completely out of microswitch (2).

Raise retaining tab (3) of microswitch (2) and remove microswitch (2) in direction of arrow.

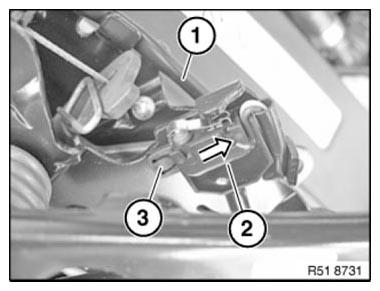

Fig 1: Removing Microswitch

Courtesy of BMW OF NORTH AMERICA, INC.
