51 23 110 Removing and installing/replacing engine compartment lid lock on left (from 09/2008): Notes

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove SERVICE FLAPS, LEFT AND RIGHT

Slacken screws (1) and release screws (2).

Tightening torque 51 61 4AZ .

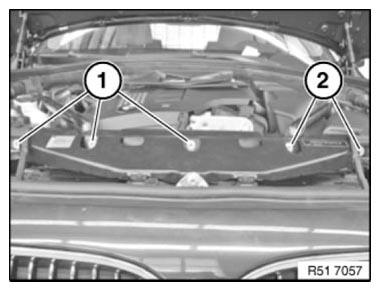

Fig 1: Identifying Engine Compartment Lid Lock Screws

G06885620

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown removed here for purposes of clarity.

Pull back retaining spring from release lever (1).

Feed Bowden cable (2) out of release lever (1) and catch carrier (3).

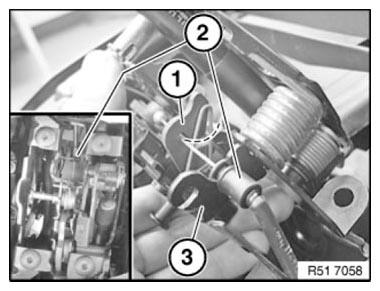

Fig 2: Identifying Bowden Cable, Release Lever And Catch Carrier

G06885621

Courtesy of BMW OF NORTH AMERICA, INC.

Engine compartment lid catch with microswitch:

Detach plug connection (1) by twisting from catch carrier.

Unfasten plug connection (1) and disconnect.

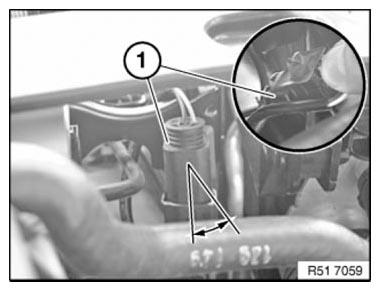

Fig 3: Identifying Plug Connection

G06885622

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on engine compartment lid lock (2).

Tightening torque 51 23 2AZ .

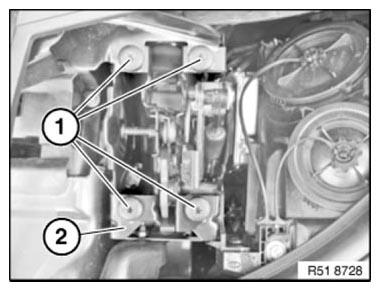

Fig 4: Identifying Engine Compartment Lid Lock And Screws

G06885623

Courtesy of BMW OF NORTH AMERICA, INC.

Push engine compartment lid lock (1) inwards until lock carrier (2) can be raised at the rear (see dashed line).

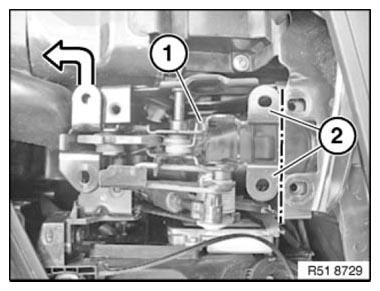

Fig 5: Pushing Engine Compartment Lid Lock

G06885624

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out bonnet lock (1).

Engine compartment lid catch with microswitch:

Feed out cable from microswitch for anti theft alarm system.

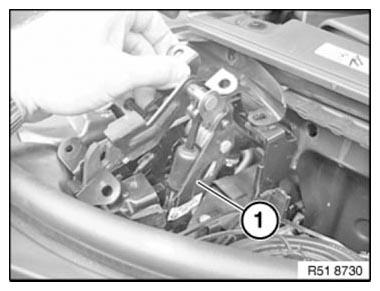

Remove engine compartment lid lock (1).

Fig 6: Lifting Out Bonnet Lock

G06885625

Courtesy of BMW OF NORTH AMERICA, INC.
