51 32 420 Removing and installing/replacing trim on front door window frame, left or right

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

If necessary, open the window glass
Remove FRONT DOOR TRIM

Carefully feed out the rubber window seal (1) in working area. When doing this pay attention to the connection to the inner window cavity (see mark).

Installation note:

Coat rubber window seal (1) with water before fitting.

Unfasten screws (2).

Fig 1: Identifying Rubber Window Seal And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Graphic is only an example.

Protect top frame trim against scratches.

Move cover (1) somewhat down and feed out above.

Lever out trim (1) to the rear and feed out somewhat to the outside.

Pull out the cover (1) upward over the frame cover.

Installation note:

If necessary, replace damaged plastic nuts from the bolts (1).

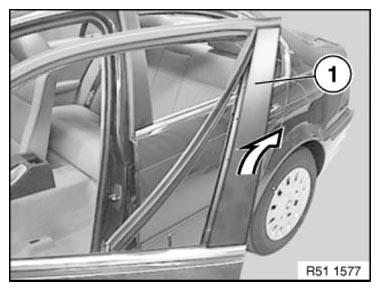

Fig 2: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check trim (1) for damage, replace if necessary.

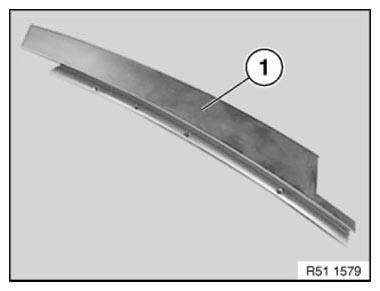

Fig 3: Identifying Trim

Courtesy of BMW OF NORTH AMERICA, INC.
