51 32 211 Replacing front left or right rubber guide for left or right door window
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove front SIDE WINDOW
IMPORTANT:
The "INSTRUCTIONS ON FITTING WINDOW GUIDE SEALS
" serve as the basis for this repair instruction and must be observed without fail.

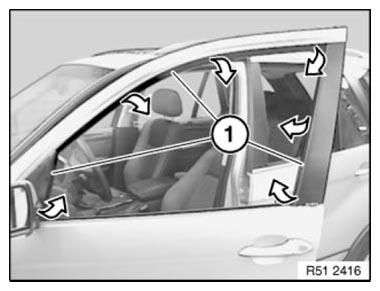

Pull rubber guide (1) completely out of front door.
Installation note:
Moisten rubber guide (1) prior to fitting with approved lubricant, see 3. AUXILIARY MATERIALS AND TOOLS .
Insert rubber guide at front/bottom into window guide rail.
Installation note:

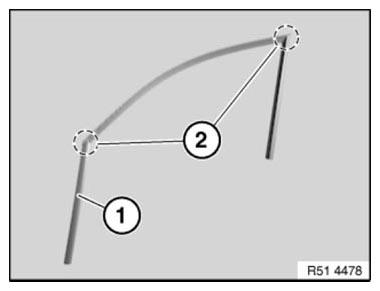

Rubber guide (1) must not be damaged in corners (2).
