51 32 160 Removing and installing/replacing inner cover on left or right window frame

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT DOOR TRIM

Starting at front end and working toward the inside and down, pry out cover (1).

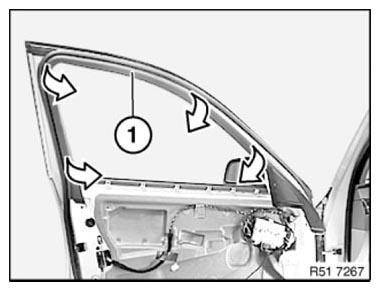

Fig 1: Prying Out Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Feed cover on window frame (2) neatly into the gap of the rubber window seal (1).
Make sure cover fits properly above door seal.

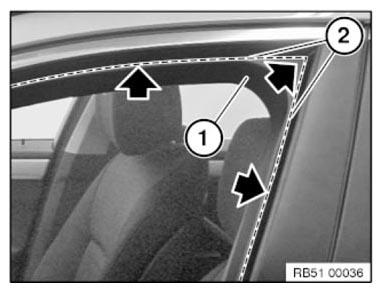

Fig 2: Identifying Window Frame And Rubber Window Seal

Courtesy of BMW OF NORTH AMERICA, INC.
