51 11 370 Removing and installing/replacing front left or right trim strip

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Unclip trim strip (1) with special tool 00 9 317 from bumper trim (2) and remove towards front.

Installation note:

Retaining lugs on trim strip (1) must not be damaged.

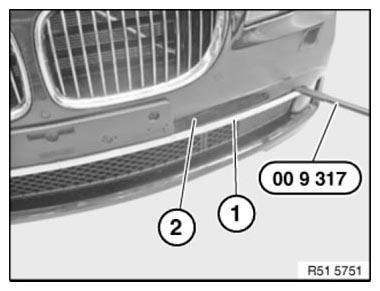

Fig 1: Removing Trim Strip From Bumper Trim Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Vehicles after 07/2012:

Tape off bumper panel in the working area.

Unclip trim strip (1) from the bumper panel using special tool 00 9 317 and remove to the front.

Installation note:

First feed in trim strip (1) with guide (2) into bumper panel, then clip in.

Latch mechanisms on trim strip (1) must not be missing or damaged.

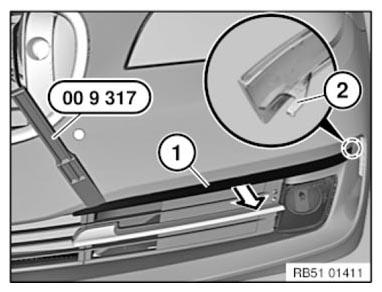

Fig 2: Removing Bumper Panel Trim Strip Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.
