64 11 865 Replacing actuator drive for recirculated air flap (vehicles with N63 engine): Notes

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove AUXILIARY ELECTRONICS BOX
Remove RIGHT/REAR SUSPENSION CROSS-BRACE

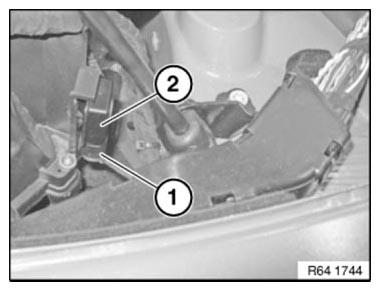

Unlock plug connection (1) on automatic air recirculation control sensor (2) and disconnect.

Fig 1: Identifying Plug Connection On Automatic Air Recirculation Control Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

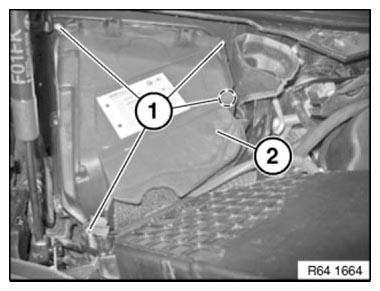

Release screws (1) on fan housing cover (2).

Lift out fan housing cover.

Fig 2: Identifying Fan Housing Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Unclip relay lever (2) with a suitable tool.

Remove actuator drive (3).

Unlock plug connection (4) and disconnect.

Fig 3: Identifying Actuator Drive, Relay Lever, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
