64 11 841 Replacing actuator drive for right footwell flap: Notes

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove INSTRUMENT PANEL TRIM

Position of actuator drive:

OVERVIEW OF ACTUATOR DRIVES ON HEATER/AIR CONDITIONER

Release screws (1).

Take off holder (2).

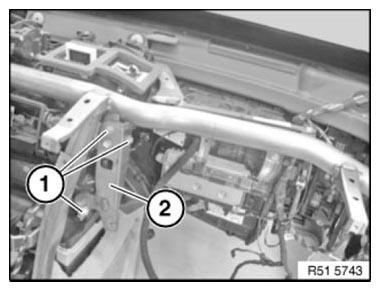

Fig 1: Identifying Holder And Screws

G06886222

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip connector piece (1) and slide downwards.

Installation note:

Latching of connector piece (1) must be felt.

Fig 2: Unclipping Connector Piece

G06886223

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Feed out right footwell air outlet duct (2).

If necessary, disconnect plug connections at actuators.

Fig 3: Identifying Right Footwell Air Outlet Duct And Screws

G06886224

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove servomotor (2) and unlock and disconnect plug connection (3).

Fig 4: Identifying Servomotor, Plug Connection And Screws

G06886225

Courtesy of BMW OF NORTH AMERICA, INC.
