64 11 787 Replacing right blinds actuator drive (F02 only)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove LUGGAGE COMPARTMENT PARTITION WALL

Release screws (1).

Remove servomotor (2) and unlock and disconnect plug connection (3).

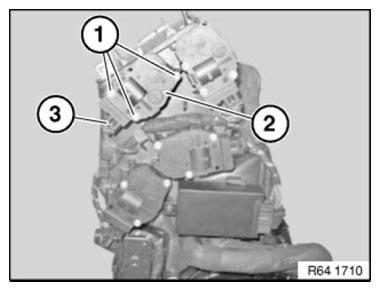

Fig 1: Identifying Servomotor, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
