64 11 532 Replacing heat exchanger (heating and air-conditioning unit removed): Notes

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Unclip deflection arm (1) from angle positioning lever (2).

Installation note:

Deflection arm (1) must snap audibly into place!

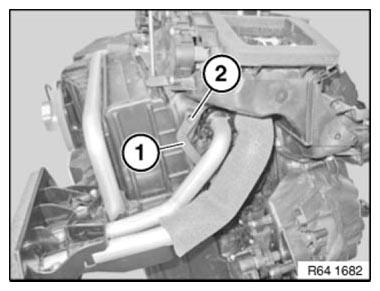

Fig 1: Identifying Deflection Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Unlock and disconnect plug connections on upper distributor housing (2).

Remove upper distributor housing (2).

Installation note:

Make sure filter housing guide lugs (3) are correctly seated in associated guide tabs on upper distributor housing (2).

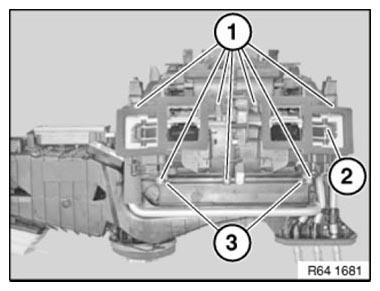

Fig 2: Identifying Upper Distributor Housing And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove heat exchanger (2) in direction of arrow from filter housing (3).

Installation note:

Heat exchanger must be pushed correctly into designated guides on filter housing (3).

Fig 3: Removing Heat Exchanger From Filter Housing

Courtesy of BMW OF NORTH AMERICA, INC.
