61 35 180 Replacing rear air conditioning control unit (F02 only)
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove LUGGAGE COMPARTMENT PARTITION WALL .
- If necessary, remove cool box

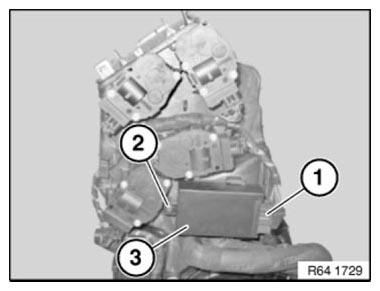

Unfasten plug connection (1) and disconnect.
Release screw (2).
Remove control unit (3).
