64 12 681 Replacing temperature sensor for left or right electric auxiliary heating - rear passenger compartment

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

NOTE: Picture for example purposes.

Unlock temperature sensor (1) by turning and remove.

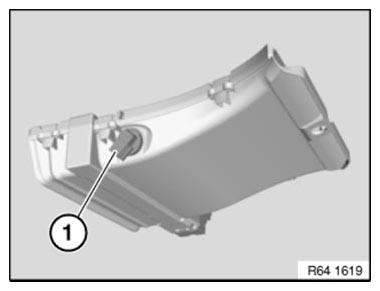

Fig 1: Identifying Temperature Sensor
G06886281Courtesy of BMW OF NORTH AMERICA, INC.
