64 12 570 Replacing turbocharger coolant pump for auxiliary heating: Notes
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Risk of burning!
Repair work on the cooling system may only be carried out when it has cooled down.
Recycling:
Coolant emerges when coolant lines are detached. Have a suitable collecting vessel ready.
Catch and dispose of emerging coolant.
Observe country-specific waste disposal regulations.
NOTE:
Clamp off COOLANT HOSES .
Necessary preliminary work:
NOTE:
Graphic similar.

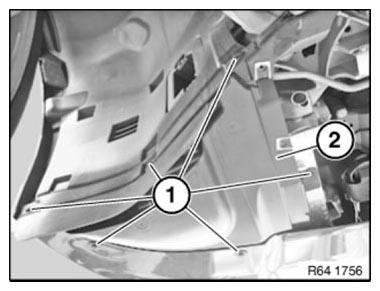

Release screws (1).
Remove lower left cover (2).
Release spring strap clips (1).
Detach coolant hoses (2).
Unfasten plug connection (1) and disconnect.
Release screw (2) and remove retaining bracket.
Remove turbocharger coolant pump (3).
