64 51 591 Removing and installing/renewing evaporator: Notes

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Non-coated evaporators were installed in connection with ozone generator on vehicles built before 09/2010.

A coated evaporators without an ozone generator is installed on vehicles built after 09/2010.

The evaporators must not be confused!

Ensure correct BMW part number!

Necessary preliminary work:

Remove REMOVING AND INSTALLING/REPLACING HEATING AND AIR-CONDITIONING UNIT
Remove HEAT EXCHANGER

Release screws (1) on filter housing (2).

Remove microfilter cover (3) in direction of arrow.

Installation note:

Microfilter cover (3) must be correctly engaged in guides on filter housing (2).

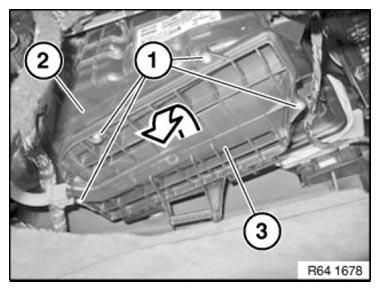

Fig 1: Removing Microfilter Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove microfilter (1) at tabs in direction of arrow from filter housing (2).

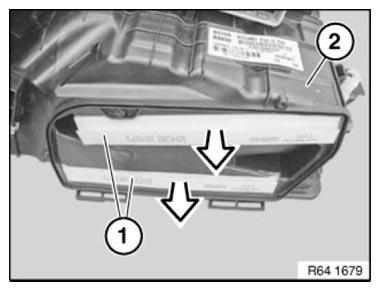

Fig 2: Removing Microfilter From Filter Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove distributor housing lower section (2).

Fig 3: Identifying Distributor Housing Lower Section And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on airbag control unit (2).

Remove airbag control unit (2).

Release all screws on filter housing upper section (2) and remove towards top.

Installation note:

In case of equipment specification with rear air conditioner, ensure correct cable routing of shut-off valve (4).

Fig 4: Identifying Airbag Control Unit And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Remove evaporator (1) in direction of arrow from distributor housing (2) and set down securely.

Fig 5: Removing Evaporator From Distributor Housing

Courtesy of BMW OF NORTH AMERICA, INC.
