64 51 001 Cleaning evaporator: Notes

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

When handling cleaning agent, observe following protective measures:

Wear protective rubber gloves and protective goggles.

If cleaning agent comes into contact with eyes or skin, wash immediately with lots of water.

Comply with notes and instructions on HANDLING CLEANING AGENTS .

Observe information for SPRAYING DEVICE .

IMPORTANT: To avoid dirtying vehicle interior:

Close all air vents
Heater - A/C system must be switched to air recirculation function
Cover carpet in work area

Recycling: Carry out the cleaning operation in a suitable washing bay as the emerging cleaning agent escapes through the drain openings in the transmission tunnel.

After completing cleaning, allow car to drip-dry for approx. 5 minutes.

Necessary preliminary tasks:

Remove REAR UNDERBODY PROTECTION
Remove MICROFILTER FOR PASSENGER COMPARTMENT VENTILATION

NOTE: Cleaning procedure must be performed in two steps with special tool 2 222 502 .

STEP 1:

Insert special tool 2 222 502 in the rear opening of the microfilter housing (1) at position (2) as shown in Fig 1.

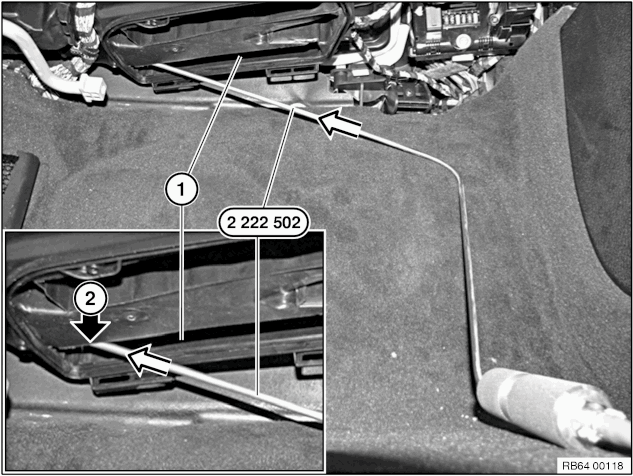

Fig 1: Inserting Special Tool 2 222 502

Courtesy of BMW OF NORTH AMERICA, INC.

Move special tool 2 222 502 from top downwards (A) up to stop.

At the same time, press special tool 2 222 502 at position (1) in the direction of the arrow against the microfilter housing.

Spray approximately half of the cleaning agent. Then pull the special tool 2 222 502 out of the microfilter housing.

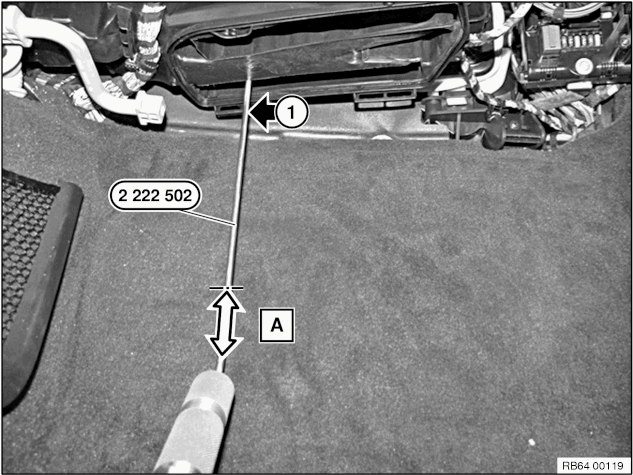

Fig 2: Spraying Half Of Cleaning Agent

Courtesy of BMW OF NORTH AMERICA, INC.

Step 2: Insert special tool 2 222 502 in the rear opening of the microfilter housing (2) at position (1) as shown in Fig 3.

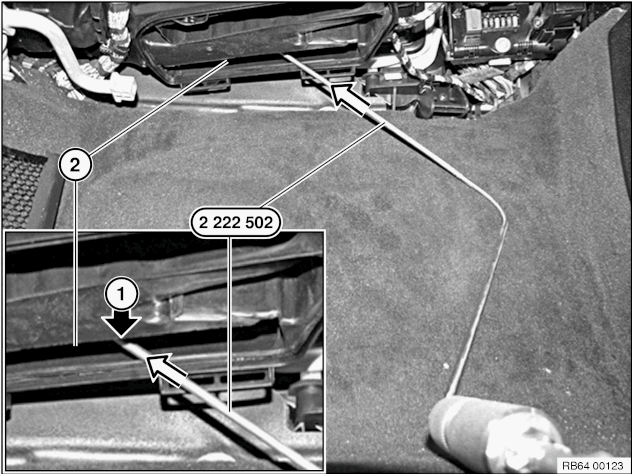

Fig 3: Inserting Special Tool 2 222 502

Courtesy of BMW OF NORTH AMERICA, INC.

Move special tool 2 222 502 from top downwards (A) up to stop.

At the same time, press special tool 2 222 502 at position (1) in the direction of the arrow against the microfilter housing.

Spray the remaining half of the cleaning agent. Then pull the special tool 2 222 502 out of the microfilter housing.

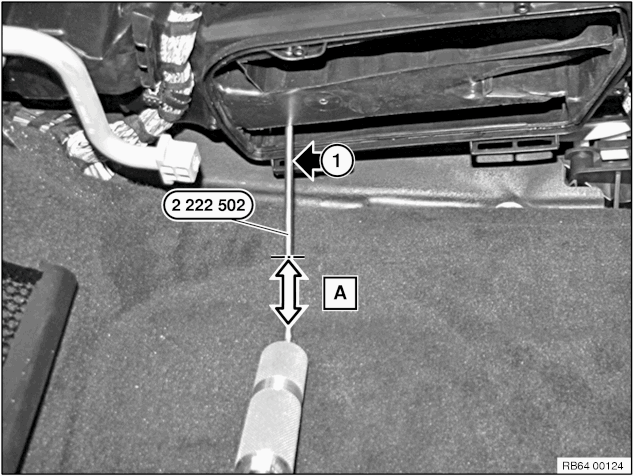

Fig 4: Spraying Remaining Half Of Cleaning Agent

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

After termination of the cleaning operation:

Set air conditioning to footwell ventilation and fresh air mode. Open side windows/doors.

Start the vehicle and let the air conditioning run for approx. 5 minutes at maximum blower output.

In order to eliminate the last remnants of cleaning agent, repeat this process shortly before handover to the customer.
