61 31 310 Replacing brake light switch

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove TRIM PANEL FOR PEDAL MECHANISM .

Disconnect plug connection (1).

Pull brake light switch (2) in direction of arrow out of brake light switch holder (4).

Installation note:

Press brake pedal (3) to floor.
Push brake light switch (2) as far as it will go into brake light switch holder (4).
Counter hold brake light switch (4) holder, slowly return brake pedal (3) to initial position and tighten to stop .

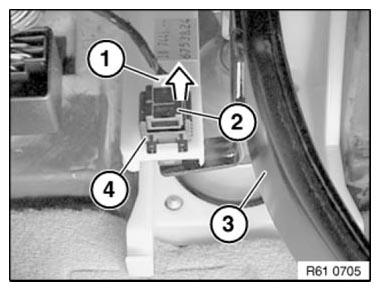

Fig 1: Pulling Brake Light Switch

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Removing brake light switch holder (1):

Press brake pedal.

Unclip brake light switch holder (1) at shanks (2) and remove towards rear.

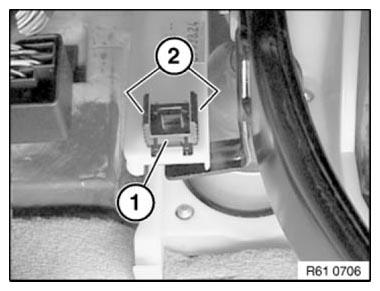

Fig 2: Identifying Brake Light Switch Holder On Shanks

Courtesy of BMW OF NORTH AMERICA, INC.
