Cutting optical fibre

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

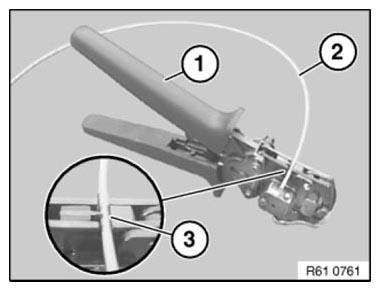

Open pliers (1).

Place optical fibre (2) in cutting device (3).

Close pliers (1) and remove optical fibre (2).

Fig 1: Removing Optical Fibre Using Plier

Courtesy of BMW OF NORTH AMERICA, INC.

Stripping insulation from optical fibre

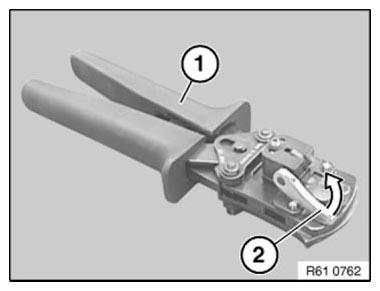

Open pliers (1).

Open lever (2) in direction of arrow.

Fig 2: Opening Lever

Courtesy of BMW OF NORTH AMERICA, INC.

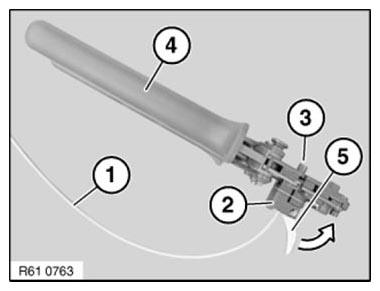

Slide optical fibre (1) into stripping device (2) until flush at point (3).

Close pliers (4) fully.

Close clamping lever (5) in direction of arrow.

Open pliers (4) by one tooth notch.

Open clamping lever (5) against direction of arrow again and remove optical fibre (1).

NOTE: A stripping replacement blade set is available under number 61 4 327.

Fig 3: Closing Clamping Lever

Courtesy of BMW OF NORTH AMERICA, INC.
