61 13 050 Removing and installing/replacing power distribution box in passenger compartment

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe SAFETY INFORMATION for handling the vehicle battery.

Necessary preliminary tasks:

Clamp off BATTERY NEGATIVE LEAD
Remove RIGHT GLOVE BOX WITH HOUSING

Disconnect plug connection (1) from power distribution box in passenger compartment (3) and junction box electronics.

Unfasten screws (2).

Tightening torque: 2 Nm.

Feed out power distribution box in passenger compartment (3) from retaining clips (4) in direction of arrow.

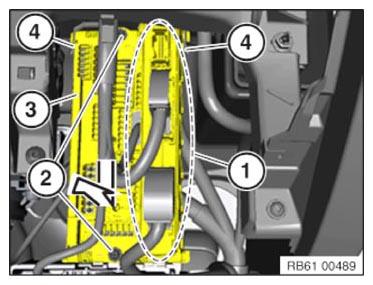

Fig 1: Identifying Power Distribution Box, Plug Connection, Screws, And Retaining Clips

G10064076

Courtesy of BMW OF NORTH AMERICA, INC.

Plug connection, e.g. on the power distribution box:

Lift lock (1) with a suitable tool.

Pull off plug connection (2) upwards.

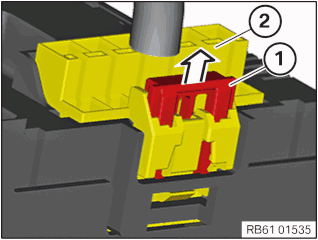

Fig 2: Lifting Lock And Pulling Off Plug Connection

G00554348

Courtesy of BMW OF NORTH AMERICA, INC.

Plug connection of the positive battery cable on the power distribution box:

Press into the opening (2) using a suitable tool (1).

Pull off plug connection (3) upwards.

Unlock and disconnect all other PLUG CONNECTIONS .

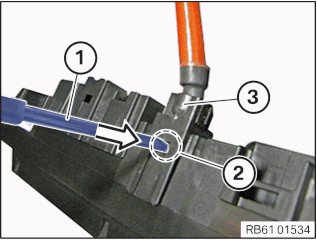

Fig 3: Lifting Lock And Pulling Off Plug Connection

G00554349

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remount the JUNCTION BOX ELECTRONICS
Remount the fuses
