61 35 975 Removing and installing/replacing bumper aerial for comfort access system

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Graphic shows the F10 by way of example, deviations in detail are possible in other models.

Depending on vehicle type and version:

Release screws (1).

Release expanding rivets (2).

Remove bottom cover (3).

Installation note:

Screws (1) and expanding rivets (2) must not be damaged or missing.

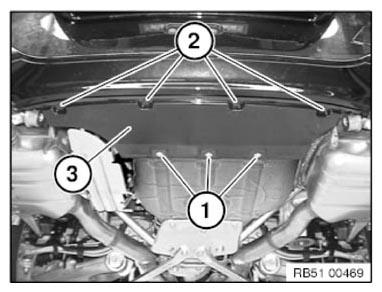

Fig 1: Identifying Expanding Rivets And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Bumper aerial is located behind bumper panel on guide at rear center.

If necessary, extend trailer tow hitch.

Reach between bumper panel and end plate.

Disconnect plug connection (1).

Unlock and remove bumper aerial (2) from bracket (3).

Installation:

Make sure bumper aerial (2) is seated correctly in bracket (3).

Fig 2: Identifying Bumper Aerial For Comfort Access System And Plug Connection And Holder

Courtesy of BMW OF NORTH AMERICA, INC.
