61 35 245 Removing and installing (replacing) Smart Opener bottom sensor line (non-contact rear lid opening)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary work:

Remove COVER ON REAR BUMPER PANEL .

Release latch mechanisms (1) and remove control unit (2) in direction of arrow.

Fig 1: Identifying Control Unit And Latch Mechanisms

G00523524

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock associated plug connection (1) on control unit (2) and disconnect.

Feed out connecting line from cable clips (3).

Fig 2: Identifying Control Unit, Plugs, And Cable Clips

G00523525

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage, do not kink sensor line!

Dismantling sequence:

Detach sensor line (1) from holder (2) to the top
Detach sensor cable (1) from holder (2) to the right

Installation note:

Make sure plug connection and sensor line (1) are correctly fitted.

Make sure connecting line is correctly laid.

Brackets must not be damaged.

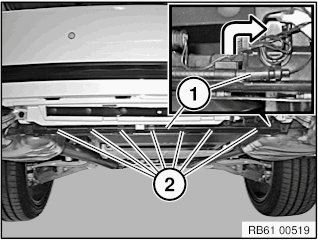

Fig 3: Identifying Sensor Line And Holder

G00523526

Courtesy of BMW OF NORTH AMERICA, INC.
