33 31 503 Lowering/raising rear axle support
Danger of injury!
Failure to comply with the following instructions may result in the vehicle slipping off the lifting platform and critically injuring other persons.
Load the luggage compartment with a minimum of 100 kg before lowering/removing the rear axle support. This prevents the vehicle from tilting or sliding off the vehicle hoist!
When supporting components, make sure that:
- the vehicle can no longer be raised or lowered
- the vehicle does not lift off the locating plates on the vehicle hoist
Before lowering rear axle support:
Observe SAFETY INSTRUCTIONS on raising the vehicle.
In order to avoid damage to vehicle hoist, perform weight compensation on vehicle.
Necessary preliminary tasks:
- Disconnect BATTERY (vehicles with air spring)
- Unclip CABLE FOR EMERGENCY RELEASE (EMF) from luggage compartment floor.
- Remove REAR WHEELS
- Remove EXHAUST SYSTEM
- Remove and tie back PROPELLER SHAFT on rear axle final drive
- Disconnect PLUG CONNECTION ON ACTUATOR UNIT (EMF)
- Unclip and disconnect cable for pulse sensor and brake pad wear sensor.
- Remove and tie up BOTH BRAKE-CALIPER SUPPORTS at wheel carrier
Unfasten plug connection (1) and disconnect.
Version with integral active steering:
Unlock and disconnect plug connections (1) from steering.
Release screw (2) and remove grounding cable.
Tightening torque 33 34 4AZ .

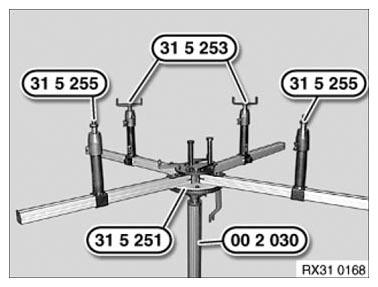

Engage special tool 31 5 251 with a 2nd person helping completely on workshop jack 00 2 030 .
Insert special tools 31 5 255 in telescopic supports of a profile rail pair.
Insert special tools 31 5 253 in telescopic supports of other profile rail pair.
Version without ARS and integral active steering:
The jacking points on the left side are shown.
Align special tool 31 5 255 with opening in rear suspension subframe.
Align special tool 31 5 253 with cross-member arms on rear suspension subframe.
The center of gravity of the rear axle must be positioned centrally over the workshop jack.
Use tensioning strap 33 5 206 to tie the rear axle support to special tool 31 5 251 .
Version with ARS and integral active steering:
Schematic diagram of rear mounting point (link side) for special tool 31 5 253 .
The front mounting point for special tool 31 5 255 is identical - version without Dynamic Drive.
The center of gravity of the rear axle must be positioned centrally over the workshop jack.
Use tensioning strap 33 5 206 to tie the rear axle support to special tool 31 5 251 .
Release screws (4).
Tightening torque 33 33 1AZ .
Remove FRONT COMPRESSION STRUTS (3).
Carefully lower rear axle carrier.
Installation note:
Arrow (1) on stop plate (2) must point in direction of travel!
- Remove BOTH REAR SPRING STRUTS FROM WHEEL CARRIER .
Following this, the rear axle support can be lowered.
