33 00... Rear axle: wheel alignment check must be carried out after the following work

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

A WHEEL ALIGNMENT CHECK must be carried out after the following work:

After releasing the following screw connections:
- Swinging arm, front/rear, to rear axle support
- Swinging arm to integral link/wheel carrier
- Guide arm to rear axle support/HSR unit
- Wishbone to rear axle support/wheel carrier
After replacement of the following parts:
1. Rear axle support
2. HSR actuator
3. Toe arm
4. Swinging arm
5. Wheel carrier
6. Integral link
7. Wishbone

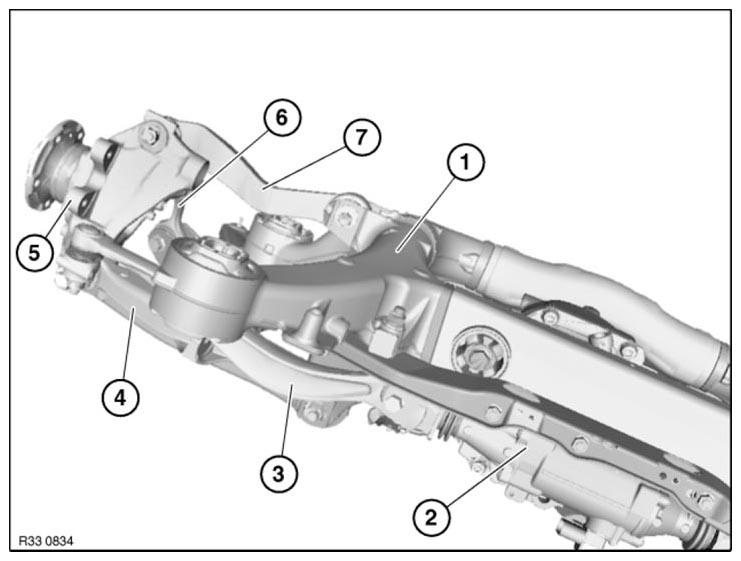

Fig 1: Identifying Rear Axle Support, HSR Actuator, Toe Arm, Swinging Arm, Wheel Carrier, Integral Link, And Wishbone

Courtesy of BMW OF NORTH AMERICA, INC.
