00..... Raising vehicle with trolley jack
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:

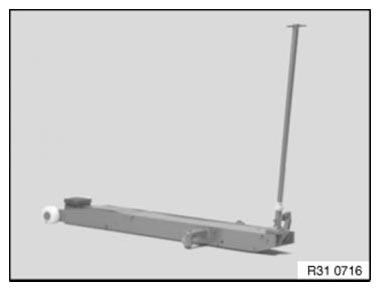

Observe the following trolley-jack-related instructions:
- Use only BMW-distributed/approved trolley jacks which have rubber plate contact points.
- Trolley jacks must be regularly serviced and always checked for functional reliability before they are used!
- Check the rubber plate on the trolley jack prior to each use, replacing if necessary.
IMPORTANT:
All-wheel drive vehicles may only be raised with the stiffening plate mounted on the front axle (1)!
Raising directly on the front axle support without stiffening plate is not permissible!
Raising directly on the front axle support without stiffening plate is not permissible!
WARNING:

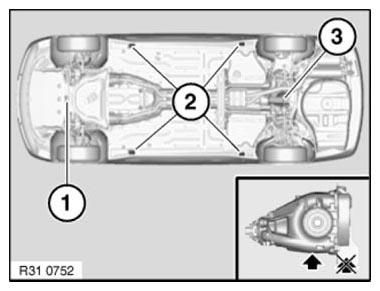

The vehicle may be raised with a trolley jack only
at the following jacking points!
- Car jacking point
- Side car jacking points
- Rear axle final drive
Risk of damage: It is not permitted to raise the vehicle at the rear differential cover!
Risk of damage!
Jacking point (1) must be present!
Align the rubber plate on the trolley jack to the jacking point (1) in such a way that there is no contact to adjacent components and that they are therefore not damaged.
