33 32 064 Removing and installing/replacing left or right swinging arm: Notes

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the swinging arm is detached from the integral link/wheel carrier or rear axle support, it is necessary after re-installation to carry out a chassis/wheel alignment check.

Necessary preliminary work:

Remove REAR WHEEL
Remove ANTI-ROLL BAR LINK FROM SWINGING ARM
Remove INTEGRAL LINK FROM SWINGING ARM

Slacken nut (1).

Tightening torque 37 14 5AZ .

Remove jointed rod (2) from swinging arm.

Installation note:

Sensor lever (3) must point from ride height sensor to respective rear wheel.

Replace self-locking nut.

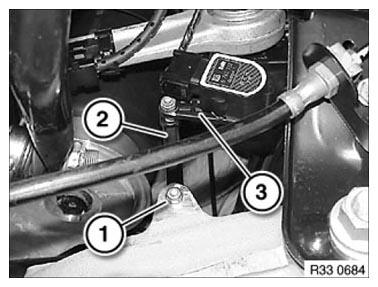

Fig 1: Identifying Slacken Nut, Jointed Rod And Sensor Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Remove bolt (2) towards rear.

Tightening torque 33 32 3AZ .

Installation note:

Replace self-locking nut.

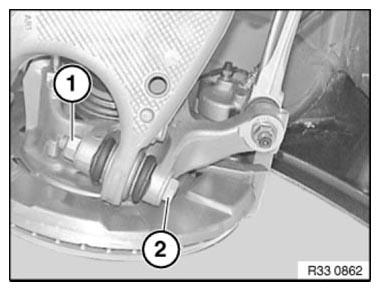

Fig 2: Identifying Slacken Nut And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

Loosen the screw connection swinging arm on rear axle support only with ring installation tool (1) and extension lever (2).

Release torque > 400 Nm

Ring fitting tool: Order No. 81 64 2 185 817

Extension lever: Order No. 81 64 2 185 816

Fig 3: Identifying Ring Installation Tool And Extension Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) and remove eccentric washer (see magnified area in Fig 4). Pull out eccentric bolt (2).

Tightening torque 33 32 2AZ .

Installation note:

Note direction of insertion of eccentric bolt (2).

Align eccentric bolt (2) by means of marking to rear axle support.

Reinstall eccentric washer (see magnified area in Fig 4).

Replace self-locking nut.

Tighten bolt connection in NORMAL POSITION .

Release nut (3) and remove bolt (4).

Tightening torque 33 32 1AZ .

Installation note:

Replace nut.

Fig 4: Identifying Nuts And Eccentric Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten bolt connection in NORMAL POSITION .
