33 33 111 Replacing all rubber mounts for rear axle support

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Danger of injury!

Failure to comply with the following instructions may result in the vehicle slipping off the lifting platform and critically injuring other persons.

Before lowering/removing the rear axle support, it is essential to place a minimum load of 100 kg in the luggage compartment to prevent the vehicle from toppling/slipping off the vehicle hoist!

When supporting components, make sure that:

the vehicle can no longer be raised or lowered
the vehicle does not lift off the locating plates on the vehicle hoist.

IMPORTANT:

Before removing rear axle support:

Observe SAFETY INFORMATION for raising the vehicle

In order to avoid damage to vehicle hoist, perform weight compensation on vehicle.

Necessary preliminary work:

Remove REAR AXLE SUPPORT

WARNING:

Risk of damage!

It is mandatory to observe the correct press-out and press-in directions. Failure to comply with this requirement will result in damage to the rear axle support!

To ensure that rear axle rubber mounts are securely seated in rear axle support, observe a waiting period of 2 hours after pressing in rubber mounts.

Press-out and press-in directions pictured:

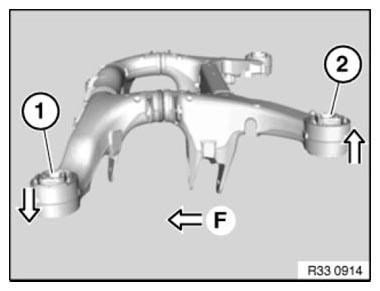

The front rubber mount (1) is inserted and removed towards the bottom.
The rear rubber mount (2) is inserted and removed towards the top.

Fig 1: Identifying Front And Rear Rubber Mount
Courtesy of BMW OF NORTH AMERICA, INC.

Spread apart rubber mount with special tool 00 9 317 and insert Damping inlay (1) to limit position!

Fig 2: Inserting Damping Inlay Using Special Tool (00 9 317)
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Removal and installation are described on the front rubber mount.

NOTE: Edges (2) break off when rubber mount (1) is pulled out in the direction of arrow.

Fig 3: Identifying Edges And Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.

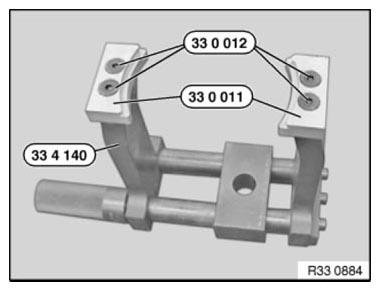

Assemble special tool 33 4 140 in conjunction with 33 0 011 and 33 0 012.

Fig 4: Assembling Special Tool (33 4 140) In Conjunction With (33 0 011) And (33 0 012)

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out rubber mounts from rear axle support using special tools 33 0 000 , 33 4 140 , 2 208 577, 2 155 744 and 2 208 574.

NOTE:

Align special tool 33 0 000 form-fit to the rubber mount.

Make sure special tool 33 4 140 is correctly supported on rear axle support bush.

Fig 5: Pulling Out Rubber Mounts Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Applicable to front rubber mount:

(View of rear axle support from above)

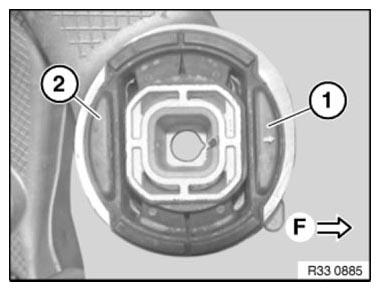

IMPORTANT: Arrow (1) must point on rubber mount (2) in direction of travel.

Fig 6: Identifying Front Rubber Mount Installation Position

Courtesy of BMW OF NORTH AMERICA, INC.

Applicable to rear rubber mount:

(View of rear axle support from below)

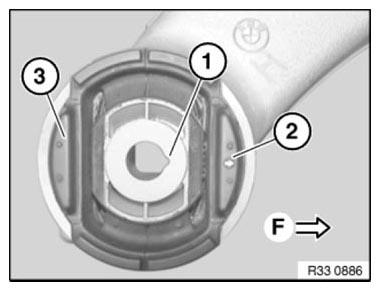

IMPORTANT: Notch (1) and arrow (2) on rubber mount (3) must point in direction of travel.

Fig 7: Identifying Rear Rubber Mount Installation Position

Courtesy of BMW OF NORTH AMERICA, INC.

Coat rubber mount with Circo Light.

Pull in the rubber mounts (1) to the limit position of the rear axle support using special tools 33 0 000 , 33 4 140 , 2 208 577, 2 208 574 and 2 155 744.

Fig 8: Pulling In Rubber Mounts Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Activate and fill air suspension system
