32 34 020 Removing and installing/replacing airbag unit

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe the following instructions to avoid any risk of injury by the airbag unit.

Comply with SAFETY REGULATIONS for handling components with gas generators.
Do not exert any force on the airbag unit.
Use only specified tools for releasing the airbag unit.

NOTE: Incorrect handling may result in triggering of the airbag unit and thereby cause serious injury.

IMPORTANT:

Steering wheel must be replaced if airbag unit has been triggered! See REPLACING STEERING WHEEL or REPLACING SPORT STEERING WHEEL .

Follow PROCEDURE AFTER AIRBAG DEPLOYMENT .

Necessary preliminary tasks:

Disconnect BATTERY EARTH LEAD

Insert Torx screwdriver T30 (1) straight into concealed opening on reverse side of steering wheel until a spring resistance is felt (approx. 2 cm).

Increase pressure at spring leg with Torx screwdriver T30 (1) until airbag unit is unlocked.

For purposes of clarity: airbag unit removed.

Installation note:

Make sure electrical leads are correctly positioned.

Fig 1: Identifying Torx Screwdriver T30 (32 34 020)

Courtesy of BMW OF NORTH AMERICA, INC.

Snap airbag unit with uniform pressing force plane-parallel in direction of steering column shaft into steering wheel.

WARNING:

Danger of injury!

Airbag unit may only be set down with the airbag itself facing upward .

Tilt airbag unit towards rear.

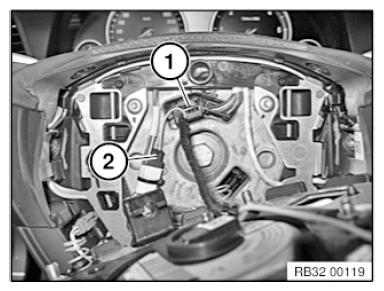

Disconnect plug connection (1) and earthing cable (2) and remove airbag unit.

Fig 2: Identifying Airbag Unit Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.
