32 41 285 Replacing level switch for Dynamic Drive fluid reservoir

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove front left SUSPENSION CROSS-BRACE
Remove INTAKE PORT for air filter housing.

Release screws (1) and (2).

Remove washers.

Tightening torque 32 41 1AZ/2AZ

Remove fluid reservoir by pulling upward.

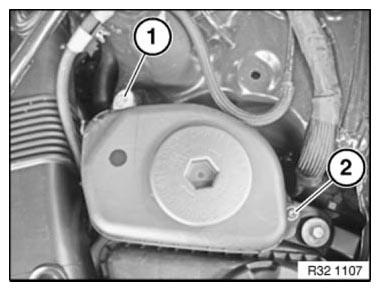

Fig 1: Identifying Washer Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Raise and/or turn fluid reservoir in order to gain better access to plug connection.

Disconnect plug connection (1).

Turn level switch (2) through approx. 45° and remove towards bottom.

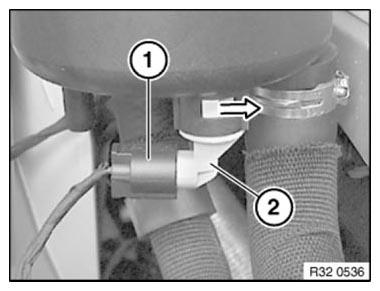

Fig 2: Disconnect Plug Connection By Turning Level Switch

Courtesy of BMW OF NORTH AMERICA, INC.
