Version without active steering

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Remove front UNDERBODY PROTECTION .

Move steering into straight-ahead driving position by means of markings on cap (1) and steering box (2).

Align steering wheel and secure with steering wheel arrester.

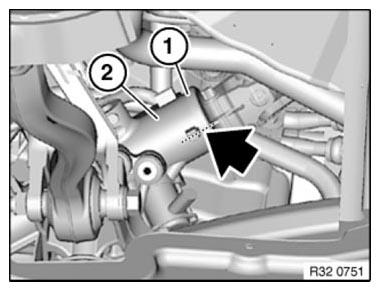

Fig 1: Locating Straight-Ahead Driving Position Mark On Steering Box Cap
G06889623Courtesy of BMW OF NORTH AMERICA, INC.

Clean thread on track rod.

Slacken clamping nut (2), gripping track rod end (1) in the process.

Remove clamp (4).

Turn track rod (3) to adjust toe-in to setpoint value.

Version with active steering: Check total steering angle; if necessary, set to "zero".

Check toe values, repeat adjustment if necessary.

Tighten down clamping nut (2).

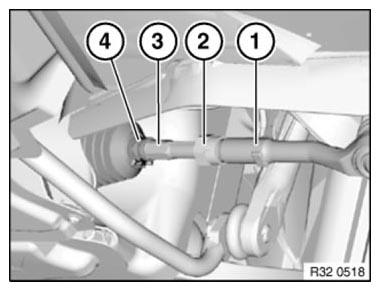

Fig 2: Identifying Track Rod With Clamping Nut, Track Rod End And Clamp
G06889624Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 32 21 2AZ .

Fit clamp (4).

After installation:
