31 00... Front axle + steering: wheel/chassis alignment check must be carried out after the following work

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

A WHEEL/CHASSIS ALIGNMENT CHECK must be carried out after the following work:

Release of following screw/bolt connections:
- Steering gear to front axle support (with identification no alignment check required, see REMOVING HYDRAULIC STEERING GEAR or REMOVING HYDRAULIC STEERING GEAR (WITH ACTIVE FRONT STEERING) )
- Lower wishbone to front axle support
- Track rod end to track rod
Replacement of following parts:
1. Front axle support
2. Steering gear
3. Swivel bearing
4. Lower wishbone
5. Track rod end
6. Track rod

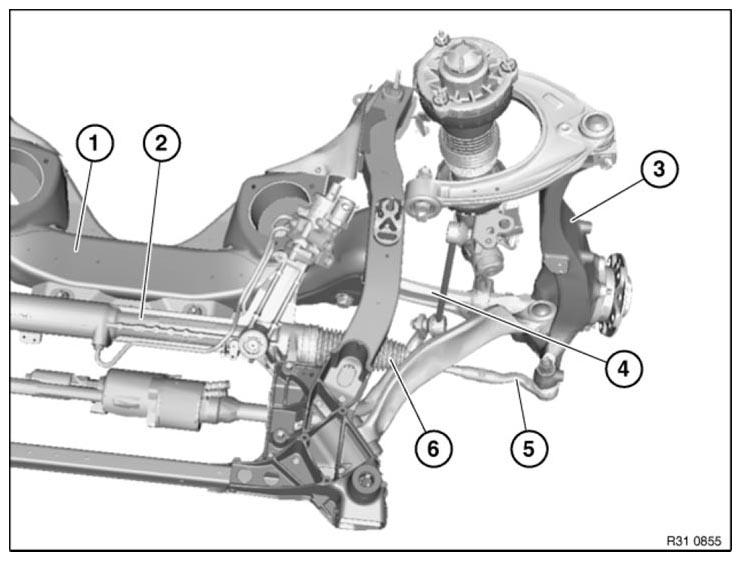

Fig 1: Identifying Front Axle Support, Steering Gear, Swivel Bearing, Lower Wishbone And Track Rod

Courtesy of BMW OF NORTH AMERICA, INC.
