SI number

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2014 BMW Alpina B7L, 2014 BMW Alpina B7, and 2013 BMW Alpina. However, it is still accessible from the selected car via links, so may be relevant.

01 12 96 (103)

Consisting of:

1 = 0493621 Plate

NOTE: (Mounting plate) For adapter 17 2 011 - Transmission: A5S 325Z

1 = 0491404 Adapter

NOTE: For connecting the oil cooler lines to the oil dispenser unit - Transmission: A5S 310Z, A5S 560Z, A5S 325Z

2 = 0491405 Adapter

NOTE: (Adapter (2 pieces)) For connecting the oil cooler lines to the oil dispenser unit - Transmission: A4S 310R

3 = 0491406 Screw

NOTE: (Banjo bolt (2 pieces)) Thread M18x1.5 with nut and gasket for connecting the oil cooler lines to the oil dispenser unit - \Transmission: A5S 440Z

4 = 0491407 Screw

NOTE: (Banjo bolt (2 pieces)) Thread M16x1.5 with nut, gasket and thread piece for connecting the oil cooler lines to the oil dispenser unit - transmission: A5S 300J

5 = 0491408 Connector

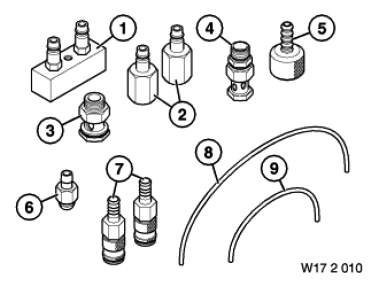

Fig 1: Identifying Adapter (172010)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For the oil dispenser unit from Tecalemit

6 = 0491409 Connector

NOTE: For the oil dispenser unit from Horn

7 = 0491410 Adapter

NOTE: (Clutch) Scope: 2 pcs.

8 = 0491411 Hose

NOTE: (Hose, long)

9 = 0491412 Hose

NOTE: (Hose, short)
