41 00... Frame Alignment Control Body Dimensions

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Dimensions in mm.

Measurement tolerances:

≤ 1000 mm ± 1 mm
≤ 1000 mm ± 2 mm

The control points shown serve to check the body and the straightening attachment.

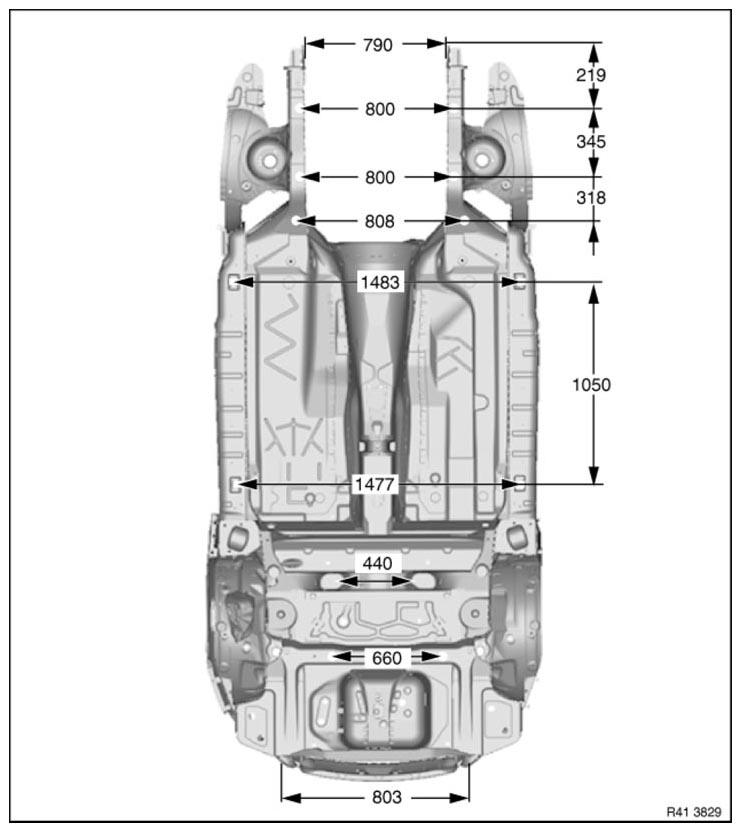

Under Body View 1

Fig 1: Under Body Frame Alignment Control Dimensions And Measurement Points (Under Body View 1)

Courtesy of BMW OF NORTH AMERICA, INC.

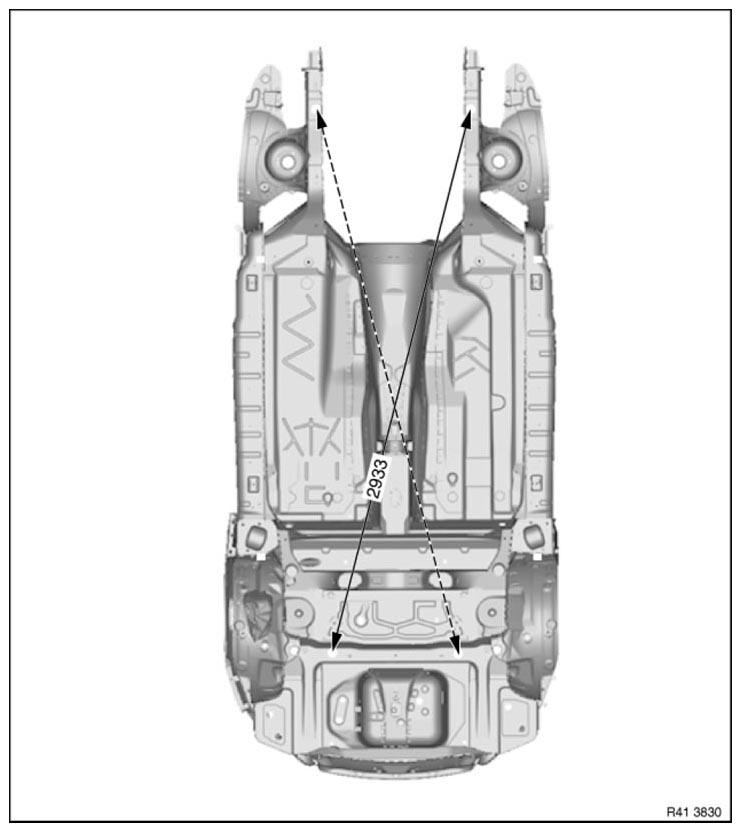

Under Body View 2

Fig 2: Under Body Frame Alignment Control Dimensions And Measurement Points (Under Body View 2)

Courtesy of BMW OF NORTH AMERICA, INC.

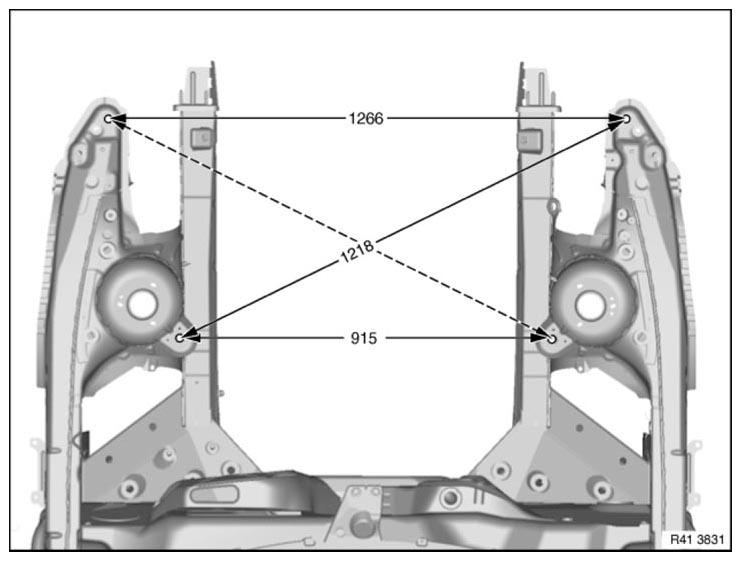

Top view, front end

Fig 3: Engine Compartment Frame Alignment Control Dimensions And Measurement Points (Top View, Front End)

Courtesy of BMW OF NORTH AMERICA, INC.
