WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 12 96 (103)

Consisting of:

1 = 0493621 Plate

NOTE: (Mounting plate) For adapter 17 2 011 - Transmission: A5S 325Z Deletion, only available via tool set

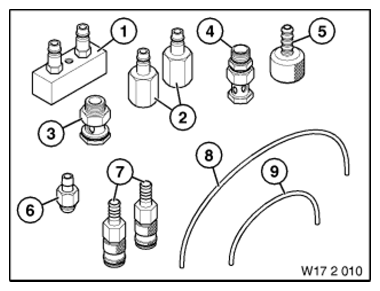

Fig 1: Identifying Adapter (172010)

1 = 0491404 Adapter

NOTE: For connecting the oil cooler lines to the oil dispenser unit - Transmission: A5S 310Z, A5S 560Z, A5S 325Z Deletion, only available via tool set

2 = 0491405 Adapter

NOTE: (Adapter (2 pieces)) For connecting the oil cooler lines to the oil dispenser unit - Transmission: A4S 310R Deletion, only available via tool set

3 = 0491406 Screw

NOTE: (Banjo bolt (2 pieces)) Thread M18x1.5 with nut and gasket for connecting the oil cooler lines to the oil dispenser unit - \Transmission: A5S 440Z Deletion, only available via tool set

4 = 0491407 Screw

NOTE: (Banjo bolt (2 pieces)) Thread M16x1.5 with nut, gasket and thread piece for connecting the oil cooler lines to the oil dispenser unit - transmission: A5S 300J Deletion, only available via tool set

5 = 0491408 Connector

NOTE: For Tecalemit oil dispenser unit Deletion, only available via tool set

6 = 0491409 Connector

NOTE: For Horn oil dispenser unit Deletion, only available via tool set

7 = 0491410 Adapter

NOTE: (Clutch) Scope: 2 pieces Only available as part of complete set

8 = 0491411 Hose

NOTE: (Hose, long)

9 = 0491412 Hose

NOTE: (Hose, short)
