Storage Location

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

A43

C17

Consisting of:

8 = 0494017 Hose

NOTE: (Pressure hose)

1 = 0491385 Adapter

NOTE: (Adapter) For checking the pressure relief valve in the radiator cap/Series: all, except E28

2 = 0491386 Tester

NOTE: (Tester without adapter) Pressure range 0...2.5 bar/Series: all, except E28 Free only for motorcycle!!!

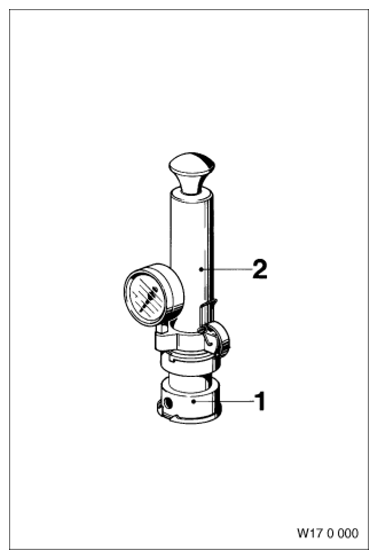

Fig 1: Identifying Tester (170000)

3 = 0491387 Adapter

NOTE: (Adapter) For screw-on radiator caps (standard thread)/Series: E28, E30, E31, E32 engine: all, except M51 Free only for motorcycle!!!

4 = 0491388 Adapter

NOTE: (Adapter) For screw-on radiator caps (standard thread)/Series: E28, E30, E32/Engine: M51 Free only for motorcycle!!!

5 = 0491389 Adapter

NOTE: (Adapter) For screw-on radiator caps (sawtooth thread)/Series: E31, E32, E34, E36, E38, E39 Replaced by 17 0 100 (0 494 417)

6 = 0491390 Adapter

NOTE: (Adapter) For screw-on radiator caps (sawtooth thread)/Replaces 06/97 with 17 0 007 /Reason: Expansion tank cover design change

9 = 0491391 Adapter

NOTE: (Adapter for radiator expansion tank) Series: E36/model: M3 US engine: W10

7 = 0493108 Adapter

NOTE: (Adapter) For testing the expansion tank cover/Series: E31, E32, E34, E36, E38, E39 Replaced by 17 0 100 (0 494 417)
