SI number

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 02 10 (618)

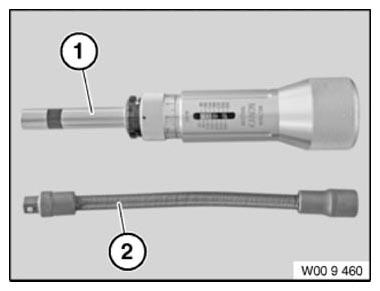

Fig 1: Identifying Torque Wrench (009460)
G11168665Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 0496781  Torque wrench

NOTE: N30LTDK (0.4 - 3.0 Nm accuracy 3%) (replaces special tool 00 9 251 from KW41/2009) Sale of existing inventory and then available only as part of complete tool set 00 9 460 (83 30 0 496 778) - as of 04/04/2012.

2 = 0496782 Extension

NOTE: Flexible shaft (Replaces special tool 00 9 552 from KW41/2009)
