009240 Shaped element Mechanical tool

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: (Shaped parts (2 pieces)) For closing off the supply air channels when dewaxing

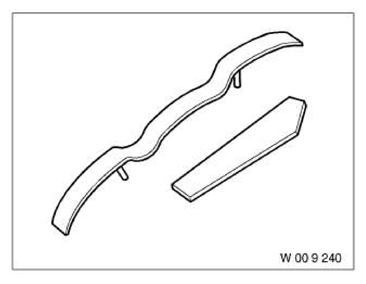

Fig 1: Identifying Shaped Element (009240)
G11168607Courtesy of BMW OF NORTH AMERICA, INC.
