SI number

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 02 09 (514)

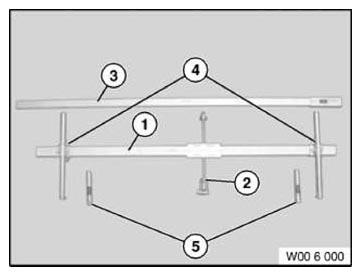

Fig 1: Identifying Device (006000)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1= 0496414 Lifting gear

NOTE: (Cross-member) Replacement for 00 0 201

2= 0496415 Spindle

NOTE: (Spindle with thrust nut) Replacement for 00 0 202

3= 0496416 Extension

NOTE: (extension for cross-member) Model series: E65 Replacement for 00 0 203

4= 0496417 Support

NOTE: (Supports) Replacement for 00 0 204

5= 0496418 Support

NOTE: (supports (extension)) Model series: R50, R53 Replacement for 00 0 205

6= 0496419 Chain

NOTE: (Chain with hook) Replacement for 00 0 209 Replaced by 00 6 080
