Storage Location

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

A14

Consisting of:

1= 0490467  Claw

NOTE: (Extractor claw (3 pieces required)) Deletion, only available via tool set

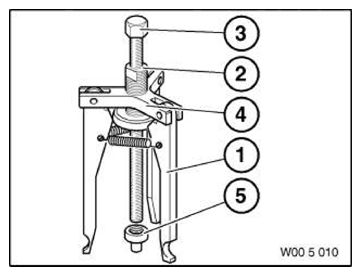

Fig 1: Identifying Puller (005010)
G11168586Courtesy of BMW OF NORTH AMERICA, INC.

2= 0490468  Spindle

NOTE: (Guide spindle) Deletion, only available via tool set

3= 0490469  Spindle

NOTE: (Pressure spindle)

4= 0490470  Fixture

NOTE: (Holding star) For holding the extractor claws Deletion, only available via tool set

5= 0490471  Synchronizing key
