SI number
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

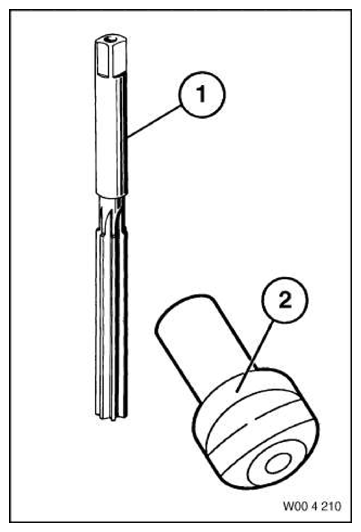

01 05 86 (604)
Consisting of:
1= 0490442 Awl
NOTE:
(Reamer 7.1 H7) Engine: S14, S38, S50, M20, M21, M40, M43, M70, M73, up to 09/92 for M42, M50, M51
1= 0490443 Awl
NOTE:
(Reamer 7.2 H7) Engine: S14, S38, S50, M20, M21, M40, M43, M70, M73, up to 09/92 for M42, M50, M51
2= 0490444 Guide taper
NOTE:
(Guide taper 7 mm) Replaced by 00 4 217 (0 490 448)
1= 0490445 Awl
NOTE:
(Reamer 8.1 H7) Engine: M10, M30
1= 0490446 Awl
NOTE:
(Reamer 8.2 H7) Engine: M10, M30
2= 0490447 Guide taper
NOTE:
(Guide taper 8 mm)
2= 0490448 Guide taper
NOTE:
(Guide taper 7 mm)
1= 0490450 Awl
NOTE:
(Reamer 6.1 H7) Engine: M44, M52, M60, M62, from 9/92 M42, M50, M51
1= 0490451 Awl
NOTE:
(Reamer 6.2 H7) Engine: M44, M52, M60, M62, from 9/92 M42, M50, M51
2= 0490452 Guide taper
NOTE:
(Guide taper 6 mm)
2= 0490453 Box
NOTE:
(Storage box)
