SI number

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 25 04 (155)

Consisting of:

1= 0495188 Assembly stand

NOTE: available only as complete assembly stand 83 30 0 495 187.

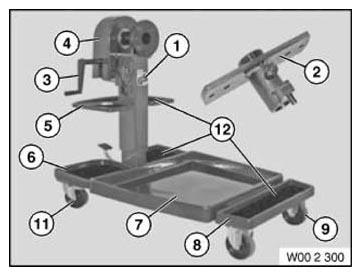

Fig 1: Identifying Assembly Stand (002300)

Courtesy of BMW OF NORTH AMERICA, INC.

2= 0495189 Tool

NOTE: (Universal flange). Do not use any more!!! Technically locked. Replaced with a new flange with material number 83 30 2 299 563 . All flanges delivered until the end of 2011 will be replaced at no charge. From 2012, only the new flange will be supplied. Also applies to the complete engine mounting stand 00 2 300 .

3= 0495200 Crank

4= 0495201 Cover

NOTE: (Protective hood)

5= 0495202 oddments tray

NOTE: (Oddments tray for small parts)

6= 0495203 Shaped element

NOTE: (Rear shaped pan)

7= 0495204 Collection pan

NOTE: (Oil collection pan)
