Propeller Shaft - Special Tools (N54) -- Z4_E89
>>
Propeller Shaft
>>
261003 Wedge AM
261003 Wedge AM
NOTE:
(Chock) For propeller shaft diameter front 50 mm, rear 70 mm

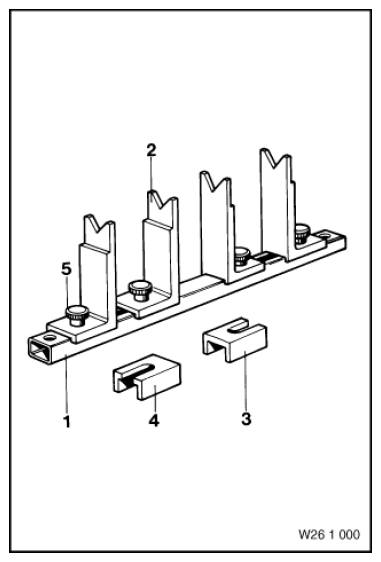

Fig 1: Identifying Wedge (261003)
Courtesy of BMW OF NORTH AMERICA, INC.
