67 62 020 Removing and installing/replacing flat motor for rear left or right power window lifter

Necessary preliminary tasks:

• Remove rear left or right POWER WINDOW UNIT

Release screws (1) on power window unit (2).

Tightening torque 67 62 1AZ .

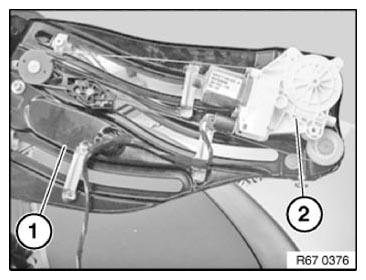

Fig 1: Identifying Screws On Power Window Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Detach flat motor for power window unit (2) from power window unit (1).

Installation:

Initialize POWER WINDOW .

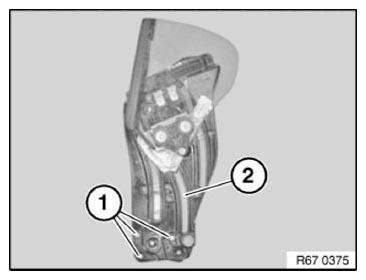

Fig 2: Identifying Flat Motor For Power Window Unit

Courtesy of BMW OF NORTH AMERICA, INC.
