2365942 Adapter MP: Notes

In conjunction with: 23 53 250

NOTE: The test adapter is an accessory of the EoS tester 83 30 2 353 250 for testing pressure of the F15PHEV high-voltage battery unit. This adapter replaces the test bell I12 (83 30 2 353 360) and is compatible with the I12 high-voltage battery unit.

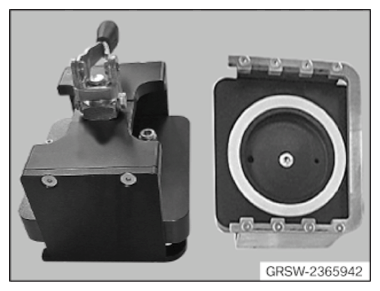

Fig 1: Identifying Adapter (2365942)
G11116115Courtesy of BMW OF NORTH AMERICA, INC.
